| Price | RM10,000.00 |
| Product SKU | PROSKIT TE-8202F-W Fiber Optic Fusion Splicing Machine |
| Brand | Proskit |
| Availability | In Stock |
| Shipping Fee | |
| Quantity |
|
Description

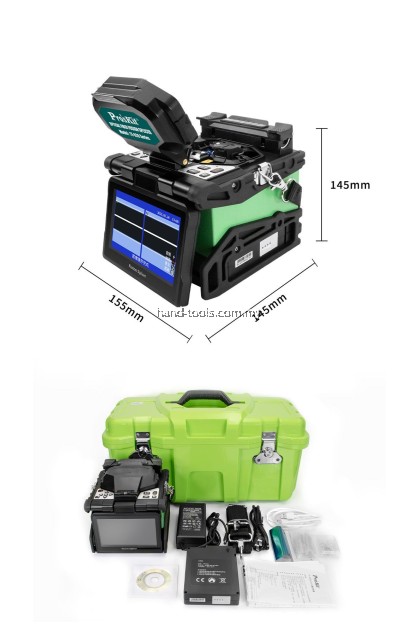

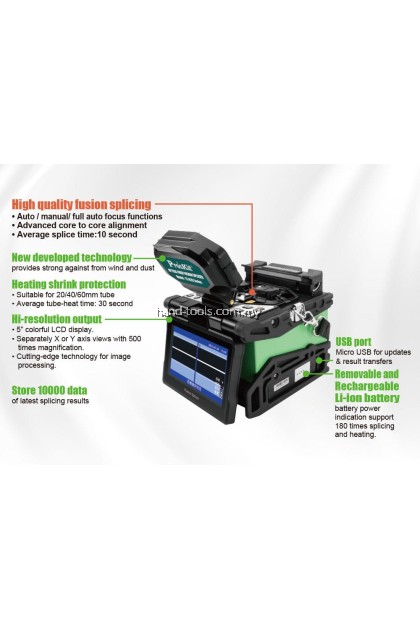

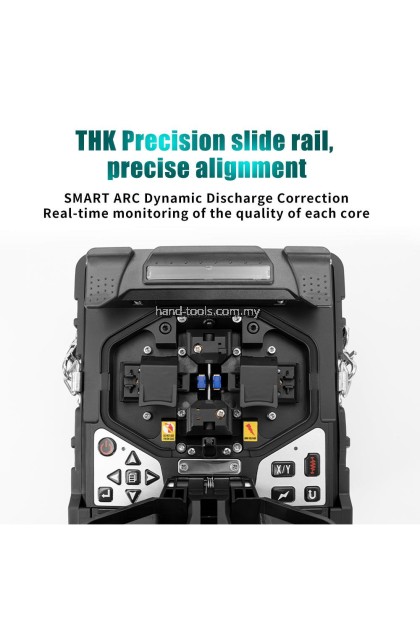

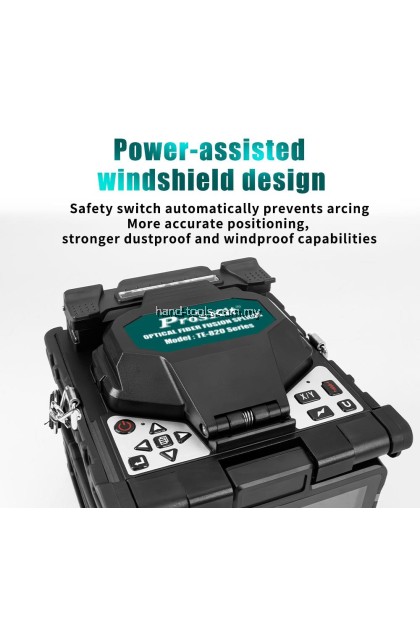

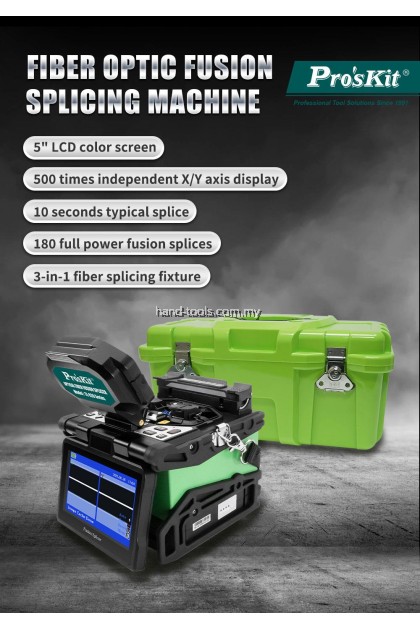

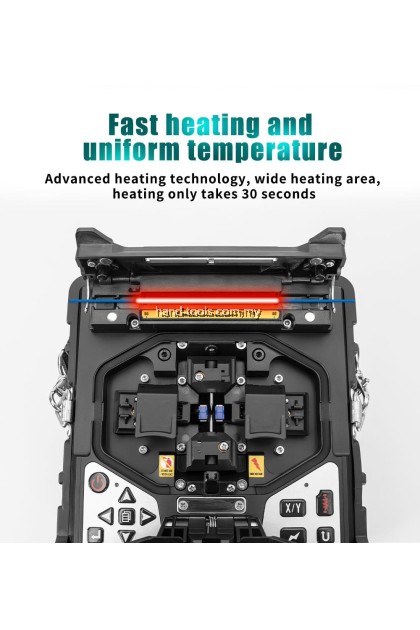

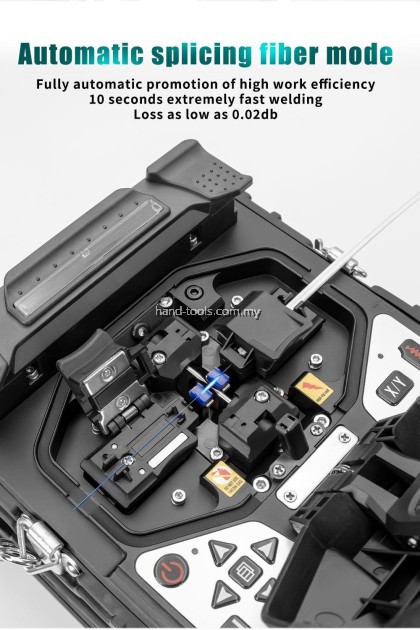

PROSKIT TE-8202F-W Fiber Optic Fusion Splicing Machine

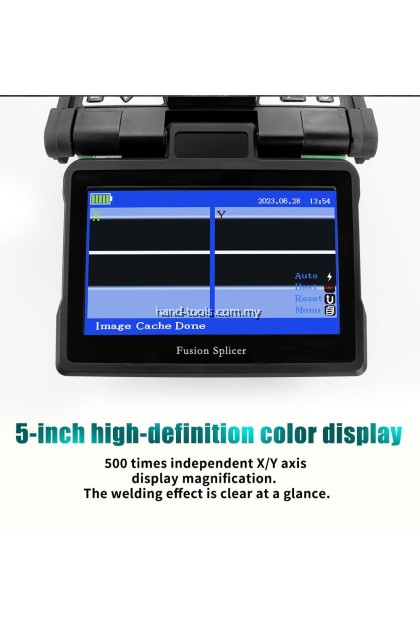

• 5'' LCD color screen
• 500 times independent X/Y axis display
• 10 second typical splice
• 180 full power fusion splices
• 3-in-1 fiber splicing fixture
| Model No. | TE-8202F-W | |
| Applicable Fibers | SM, MM, NZDS, EDF | |
| Average Splice Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) | |
| Splice Time (sec.) | 10 sec. (for SM fiber) | |
| Return Loss | ≥60dB | |
| Diameter of fiber optic | Cladding diameter:80-150μm , Coating diameter:100-1000μm | |
| Tension Test | 2.0N(200gf)(Standard) | |
| Splicing Program | 50 groups | |
| Heat Shrinkable Tube | 20mm, 40mm, 60mm | |
| Memory Capacity | 10000 memories | |
| Battery low indication | 4pcs led light indication | |
| Environmental Conditions | -10∼+50ºC (operation temperature),0∼95% RH(humidity), 0∼5000m(altitude) | |
| Standard Package | Fusion splicing machine, AC adaptor, Battery(in the machine), Spare electrodes, 60mm Shrinkable tube 25pcs, Cooling tray, Quick reference guide, Carrying case with carrying strap |
|
| Power Supply | AC adaptor: INPUT:100-240V、50/60Hz、2A，OUTPUT: DC15V、5A | |
| Standard plug | F type | |
| Battery | 10.95V/6Ah | |
| Dimensions | 155 x 145 x 145 mm | |
| Weight | 1.98kgs(battery included) | |
