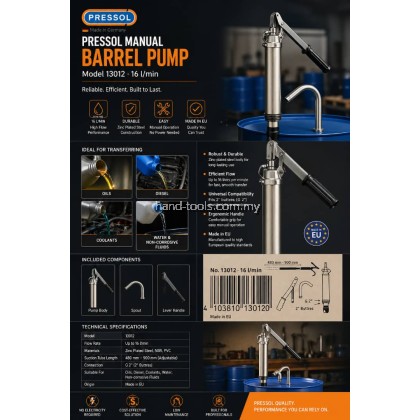

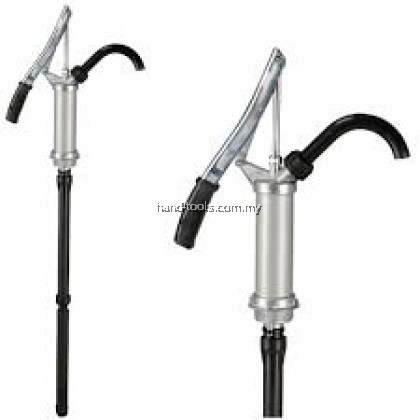

Pressol 13012 Manuel Barrel Pump
Pressol Barrel Pump 13012
Technical Data
Delivery rate (l/stroke) :0.3
Delivery rate at 60 strokes/min (l/min):18
Pumping media :oils up to SAE 90
UsageContainer for 60 / 200 / 220 l
Dischargedischarge spout, fastened by cap nut
Length of suction tube (mm)355
Immersion depth (two-part) (mm)355 – 625
Immersion depth (three-part) (mm)685 – 955
Barrel screw couplingG 2″ male
Pump headimpact-resistant zinc die casting
Pump bodyaluminium
Suction pipeHDPE (high density polyethylene)
discharge rigid nozzlePP
SealsPVC, NBR, FKM
Weight (kg)1,59
Specification
Telescopic suction tube (13 094), adjustable in length (from 355 to 955 mm)
Ergonomic handle, non-slip, excellent power transfer and handling
Packed in single carton box
With EAN bar code
Special Notes
Suitable for use in conjunction with engine oil from SAE 5 W to SAE 50, gear oil from SAE 75 W to SAE 90, fuel oil, diesel, machine oil, cutting oil, petroleum, undiluted anti-freeze
The ease of dismantling permits simple cleaning
A check valve can be easily installed without any tools in the suction tube
The check valve prevents the fluid from flowing back into the container
