| Price | RM2,900.00 |
| Product SKU | Kyoritsu 2413F |
| Brand | Kyoritsu |
| Availability | In Stock |
| Shipping Fee | |
| Quantity |
|
Description
Highlight
• Extra wide transformer jaws are best suited for clamping on all three or four wires (3phases) together for leakage current measurement.
• Frequency filter switch to eliminate the effect of harmonics.
• Output terminal.
• Resolution 0.1mA.

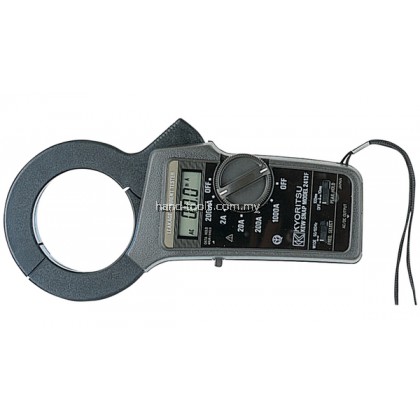

Kyoritsu 2413F Leakage Digital Clamp Meter
• Extra wide transformer jaws are best suited for clamping on all three or four wires (3phases) together for leakage current measurement.
• Frequency filter switch to eliminate the effect of harmonics.
• Output terminal.
• Resolution 0.1mA.
| AC A (50/60Hz) | 200mA/2/20/200A/1000A ±1.5%rdg±2dgt (200mA/2/20A) ±2%rdg±2dgt (200A 0 - 500A) ±5.5%rdg (501 - 1000A) |
|---|---|
| AC A (WIDE) | 200mA/2/20/200/1000A ±1%rdg±2dgt [50/60Hz], ±3%rdg±2dgt [40Hz - 1kHz] (200mA/2/20A) ±1.5%rdg±2dgt [50/60Hz], ±3.5%rdg±2dgt [40Hz - 1kHz] (200A/0 - 500A) ±5%rdg [50/60Hz], ±10%rdg [40Hz - 1kHz] (501 - 1000A) |
| Conductor size | Ø68mm max. |
| Frequency response | 40Hz - 1kHz |
| Effect of external stray magnetic field φ15mm 100A | 10mA AC max. |
| Output | Waveform : AC200mV against the maximum value of each range (1000A range is 100mV) Recorder : DC200mV against the maximum value of each range (1000A range is 100mV) |
| Applicable standards | IEC 61010-1 CAT III 300V IEC 61010-2-032 |
| Power source | 6F22 (9V) × 1 *Continuous measuring time: Approx. 60 hours |
| Dimensions | 250(L) × 130(W) × 50(D)mm |
| Weight | 570g approx. |
| Included Accessories | 9094 (Carrying Case) 6F22 × 1 Instruction Manual |
| Optional Accessories | 7073 (2WAY Output Cord) |
