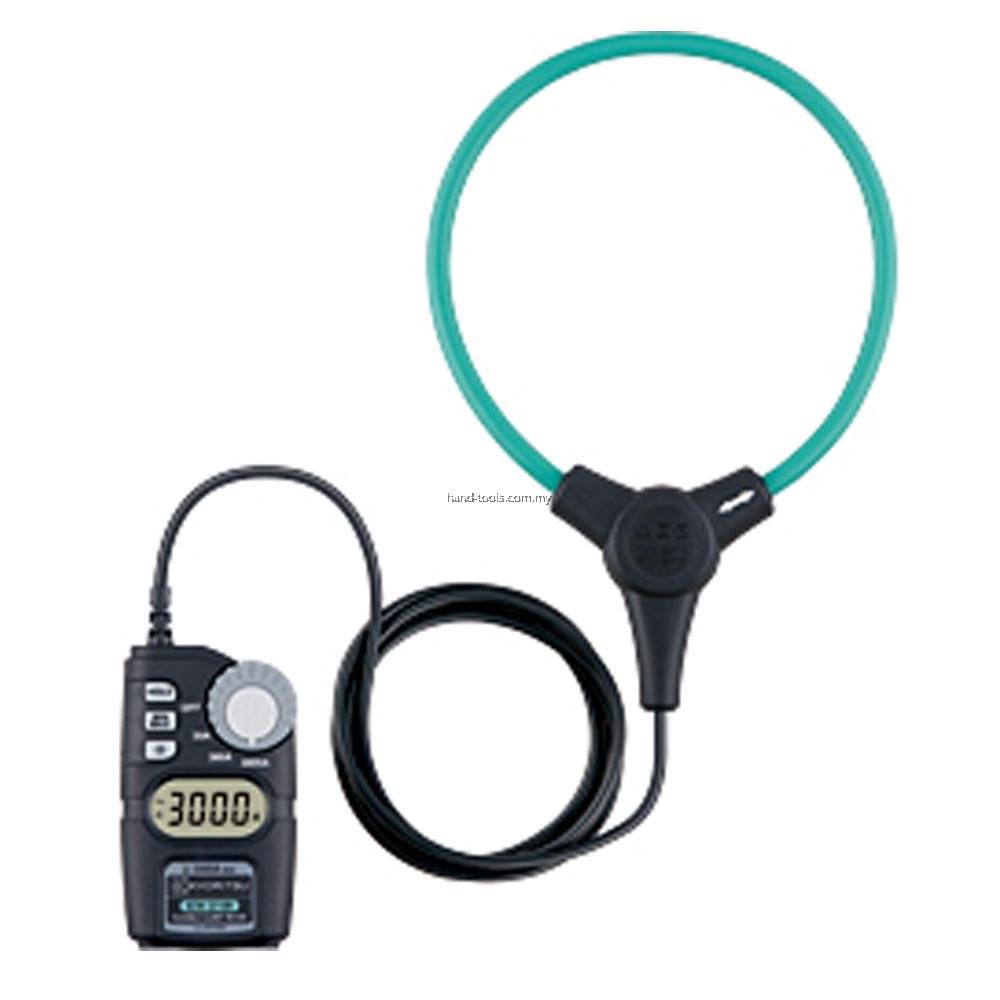

Kyoritsu 2210R AC Digital Clamp Meter
RM1,490.00
Kyoritsu 2210R AC Digital Clamp Meter
Price RM1,490.00
Product SKU Kyoritsu 2210R
Brand Kyoritsu
Availability In Stock
Shipping Fee
Quantity
Description
Highlight

• Flexible and light weight clamp sensor
• Wide reading range up to 3000A
• True RMS
• MIN MAX function
• Backlight LCD display
• IEC 61010-1 (CAT IV 600V / CAT III 1000V)

Kyoritsu 2210R AC Digital Clamp Meter

• Flexible and light weight clamp sensor
• Wide reading range up to 3000A
• True RMS
• MIN MAX function
• Backlight LCD display
• IEC 61010-1 (CAT IV 600V / CAT III 1000V)

  • TRUE RMSCAT4　600Vφ150MAX3000AACABacklightDATAHOLDMAX/MINAutoPowerOff
AC A (RMS)
　 Range 30.00/300.0/3000A
Accuracy ±3%rdg±5dgt[45-500Hz]
(At the center of the circle formed by the flexible sensor)
Crest factor
(CF)		 Full scale CF<1.6, half scale<3.2
Effective input crest values are √2 times of the max values of each range.
Conductor size φ150mm max.
Influence of
Conductor position		 Additional ±3% (max.) depending on the distance from the center position
Overload protection 5000A AC for 10 seconds
Applicable standards IEC 61010-1, IEC 61010-2-032
CAT Ⅳ 600V / CAT Ⅲ 1000V Pollution degree 2
IEC 61326-1(EMC) , IEC 60529 IP40 , EN50581(RoHS)
Operating temperature
& humidity		 0 - +50℃,less than 80% RH (without condensation)
Storage temperature
& humidity		 -10 - +60℃,less than 70% RH (without condensation)
Power source R03 / LR03(AAA)(1.5V)×2
※Continuous measuring time：approx.120hours
(Auto power off：approx.15 minutes)
Dimensions 120(L)×70(W)×26(D)：Display unit
φ8.5mm approx.：Cable diameter
1.8m approx.：Cable length
Weight 300g approx. (including batteries)
Included Accessories 9174 (Carrying case)
LR03(AAA)×2, Insruction manual
