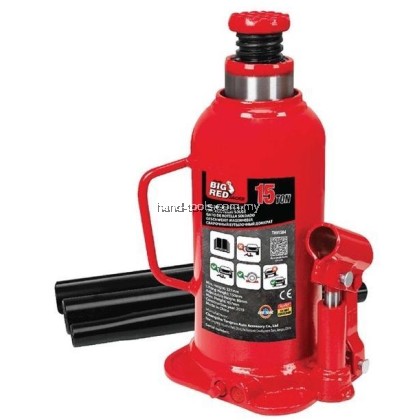

Hydraulic Bottle Jack Lifting Stand (3/5/10/15 TON)
Description:
With proper and regular maintenance, this hydraulic jack can be used for a long time without leaking. Rotate screw up when height is not enough. It's ideal for automotive, Industrial, agricultural, marine recreation and Construction applications where Lifting, Pushing, Spreading, Bending, pressing or straightening is required.. It is perfect for cars, trucks, caravans and tractors. Use it uprightly, not edge-on or upside down.
Model: TCH90304D
Capacity: 3 Ton
Min. Height (mm): 180
Lifting Height (mm): 105
Adjustable Height (mm): 60
Net weight/Gross weight (kg): 2.48/2.56
Package size (mm): 325x225x205
Model: TCH90504D
Capacity: 5 Ton
Min. Height (mm): 185
Lifting Height (mm): 115
Adjustable Height (mm): 60
Net weight/Gross weight (kg): 3.17 / 3.34
Package size (mm): 355x245x210
Model: TCH91004D
Capacity: 10 Ton
Min. Height (mm): 190
Lifting Height (mm): 110
Adjustable Height (mm): 60
Net weight/Gross weight (kg): 5.16 / 5.35
Package size (mm): 285x290x215
Model: TCH91504D
Capacity: 15 Ton
Min. Height (mm): 205
Lifting Height (mm): 125
Adjustable Height (mm): 60
Net weight/Gross weight (kg): 7.03/7.3
Package size (mm): 290x165x230
