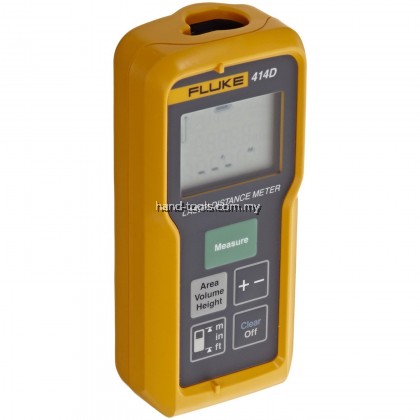

Fluke 414D 50m Laser Distance Meter
- The most advanced laser technology for distance measurement
- Simple one-button operation to instantly measure distance between two objects
- Measures up to 50 m (165 ft) with accuracy of 2 mm (0.08 in)
- Bright laser for easy targeting even at longer distances
- Quick calculation of area (square feet/meters) and volume
- Easy addition and subtraction function
- Pythagoras function indirectly measures height via two other measurements
- Stores up to five measurement results
- Battery life of 3000 measurements with automatic shut-off feature
- Two-line display with display hold (until next button is pressed)
- Carrying pouch secures to your tool belt
- Powered by two AAA batteries
Fluke 414D 50m Laser Distance Meter
Fluke 414D Features :
Put the Fluke 414D on your tool belt and reach beyond the common tape measure - up to 50 meters (165 ft). This professional-grade laser distance meter is fast and easy to use, improving accuracy and reducing measurement errors. You’ll save time and money at every step.
|
All meters offer:
|
Fluke 414D Specification :
|
414D |
419D |
424D |
|
|
Distance Measurement |
|||
|
Typical Measuring Tolerance[1] |
± 2.0 mm [3] |
± 1.0 mm [3] |
|
|
Maximum Measuring Tolerance[2] |
± 3.0 mm [3] |
± 2.0 mm [3] |
|
|
Range at Leica target plate GZM26 |
50 m / 165 ft |
80 m / 260 ft |
100 m / 330 ft |
|
Typical Range[1] |
40 m / 130 ft |
80 m / 260 ft |
80 m / 260 ft |
|
Range at unfavorable condition[4] |
35 m / 115 ft |
60 m / 195 ft |
60 m / 195 ft |
|
Smallest unit displayed |
1 mm / 1/16 in |
6 /30 / 60 mm |
|
|
∅ laser point at distances |
6 /30 / 60 mm |
6 /30 / 60 mm |
|
|
Tilt measurement |
|||
|
Measuring tolerance to laser beam[5] |
No |
No |
± 0.2° |
|
Measuring tolerance to housing[5] |
No |
No |
± 0.2° |
|
Range |
No |
No |
360° |
|
General |
|||
|
Laser class |
2 |
||
|
Laser type |
635 nm, <1 mW |
||
|
Protection class |
IP40 |
IP54 |
|
|
Automatic laser off |
After 90 seconds |
||
|
Automatic power off |
after 180 seconds |
||
|
Battery life (2 x AAA) 1.5 V NEDA 24A/IEC LR03 |
Up to 3,000 |
Up to 5,000 |
|
|
Size (H X W X L) |
116mm Length |
127mm Length |
127mm Length |
|
Weight (with batteries) |
113 g |
153 g |
158 g |
|
Temperature range: Storage Operation |
-25 °C to +70°C |
-25 °C to +70°C |
|
|
Calibration cycle |
Not applicable |
Not applicable |
Tilt and compass |
|
Maximum altitude |
3000 m |
3000 m |
3000 m |
|
Maximum relative humidity |
85% at 20 °F to 120°F |
85% at 20 °F to 120°F |
85% at 20 °F to 120°F |
|
Safety |
IEC Standard No. 61010-1:2001 |
||
|
EMC |
EN 55022:2010 |
||
|
[1] Applies for 100 % target reflectivity (white painted wall), low background illumination, 25 °C.
|
|||
