| Price | RM380.00 |
| Product SKU | SANWA DCL1000 Digital Clamp Meter & Multimeter CAT III 600 V |
| Brand | sanwa |
| Availability | In Stock |
| Shipping Fee | |
| Quantity |
|

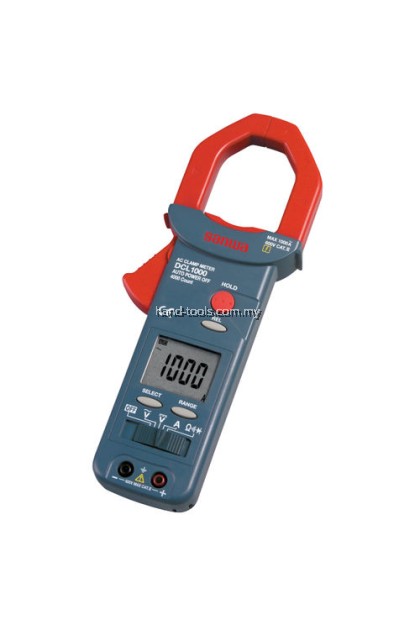

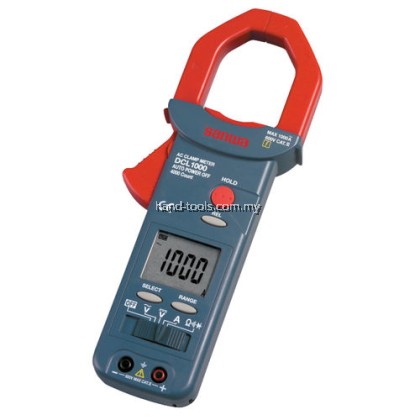

SANWA DCL1000 Digital Clamp Meter & Multimeter CAT III 600 V
The SANWA DCL1000 is a professional-grade digital clamp meter that combines high-current AC measurement (up to 1000 A) with full digital multimeter (DMM) capabilities. Built for demanding electrical and low-voltage power-supply work, it features a large display, data-hold, range hold, relative-value, and a lightweight browse-friendly body of approx. 290 g. Designed to IEC CAT III 600 V safety standard, the DCL1000 is ideal for electricians, maintenance technicians, and industrial users.
Key Features
-
Measures AC current up to 1000 A via clamp sensor.
-
Digital multimeter functions: AC/DC voltage, resistance, continuity buzzer, diode test.
-
Lightweight approx. 290 g and compact form for easier handling.
-
Large LCD display, data-hold and range-hold functions.
-
Clamp diameter approx. Φ42 mm (suitable conductor size 20×54 mm) for flexible measurement.
-
Safety compliant: IEC 61010 category CAT III 600 V.

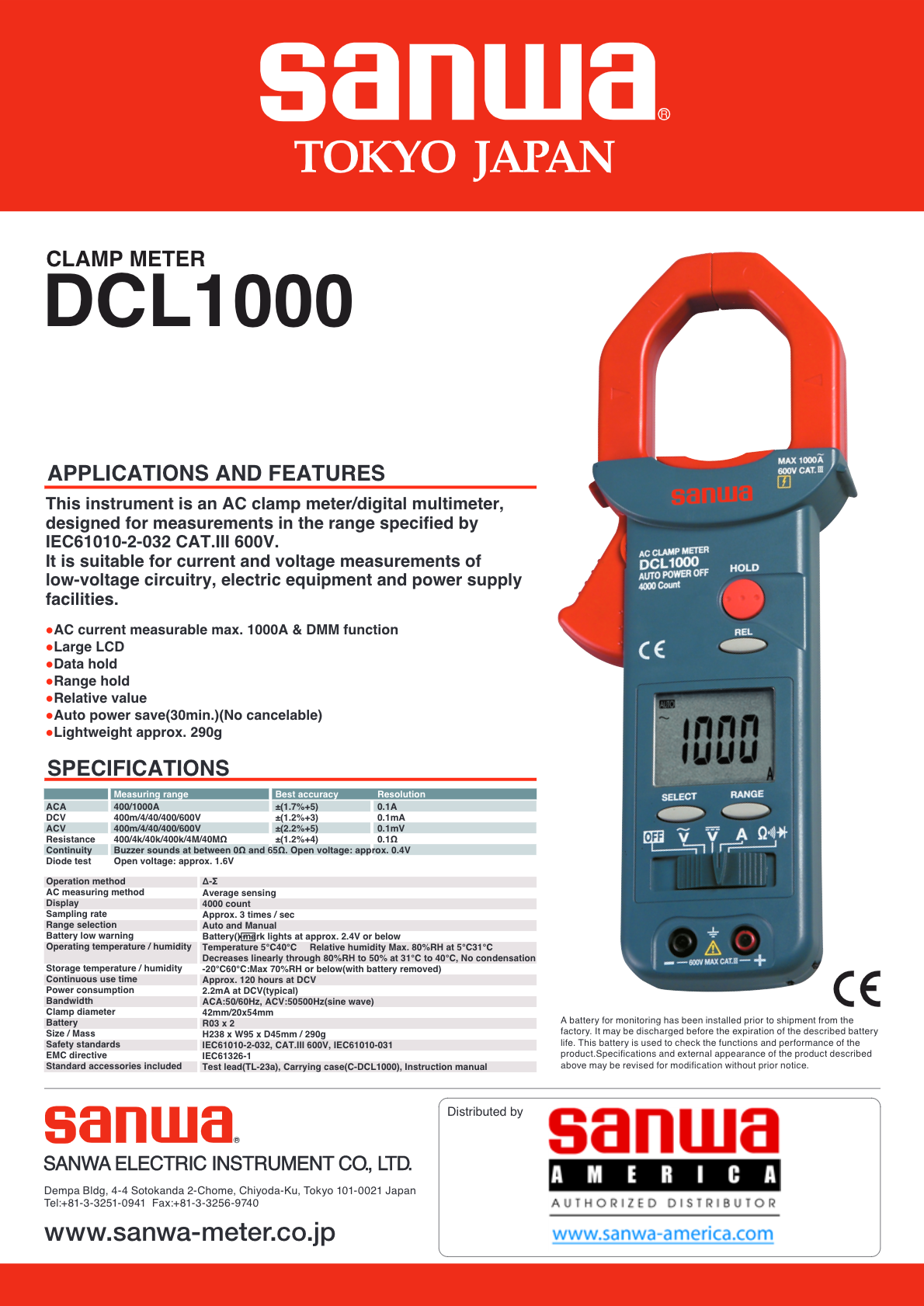

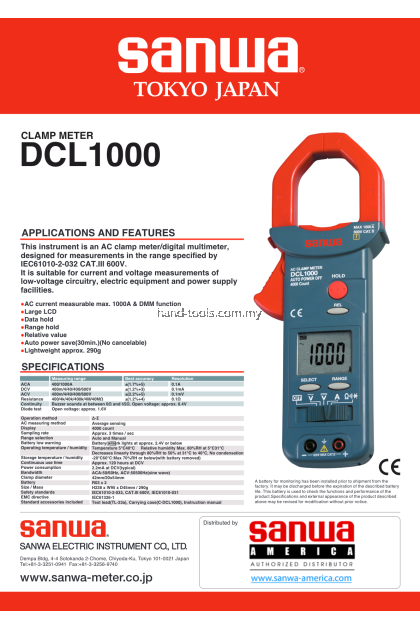

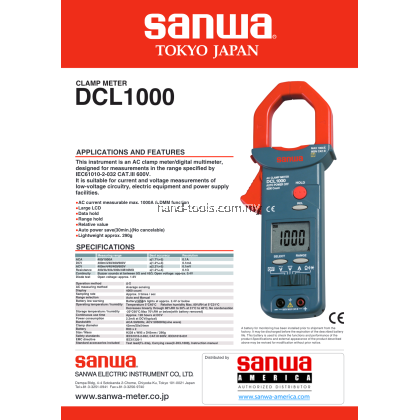

Specification Table
| Specification | Details |
|---|---|
| Brand | SANWA |
| Model | DCL1000 |
| AC Current (Clamp) | 400 A / 1000 A (±1.7% + 5) resolution 0.1 A |
| DC Voltage (DMM) | 400 mV / 4 V / 40 V / 400 V / 600 V (±1.2% +3) resolution 0.1 mV |
| AC Voltage | 400 mV / 4 V / 40 V / 400 V / 600 V (±2.2% +5) resolution 0.1 mV |
| Resistance | 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ (±1.2% +4) resolution 0.1 Ω |
| Continuity | Buzzer at approx 0–65 Ω open volt 0.4 V |
| Sampling Rate | Approx. 3 times/sec |
| Clamp Diameter | Φ 42 mm / conductor size 20×54 mm |
| Display Count | 4000 counts |
| Weight | Approx. 290 g |
| Size | H 238 × W 95 × D 45 mm |
| Safety Standard | IEC 61010-2-032 CAT III 600V, IEC 61010-031, IEC 61326-1 EMC |
| Operating Temp/Humidity | 5°C-40°C, ≤80%RH; –20°C-60°C storage |

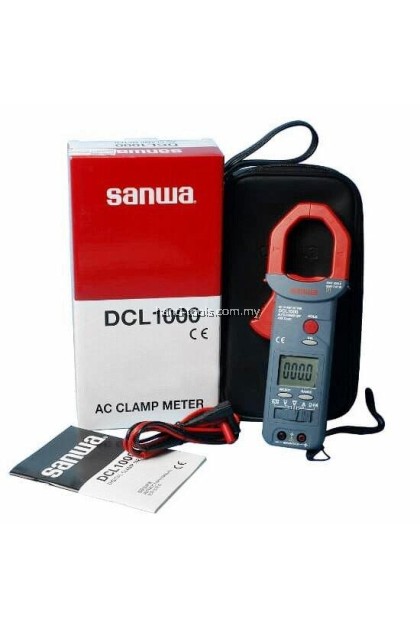

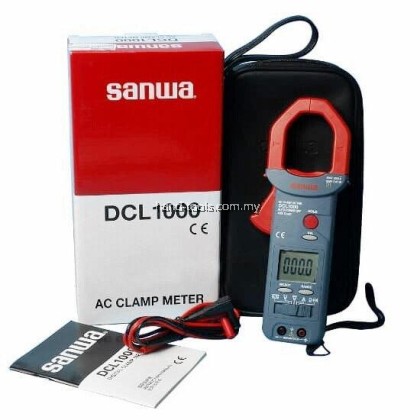

Package Content
-
1 × SANWA DCL1000 Clamp Meter
-
1 × Set of test leads (TL-23a)
-
1 × Carrying case (C-DCL1000)
-
1 × Instruction manual
