| Price | RM2,100.00 |
| Product SKU | Kyoritsu 2500 |
| Brand | Kyoritsu |
| Availability | In Stock |
| Shipping Fee | |
| Quantity |
|
• 0.01mA resolution for DC current
• Top class measurement 0.2% accuracy
• Ø6mm clamp jaw easy to use in tight places
• Measurement from 0.01mA to 120.0mA
• Dual display with backlight shows both mA measurement and percent of 4-20 mA span
• Spotlight for illuminating measurement point
• Analog output terminal for recorder connection
• Complies with IEC 61010-1 CAT II 300V

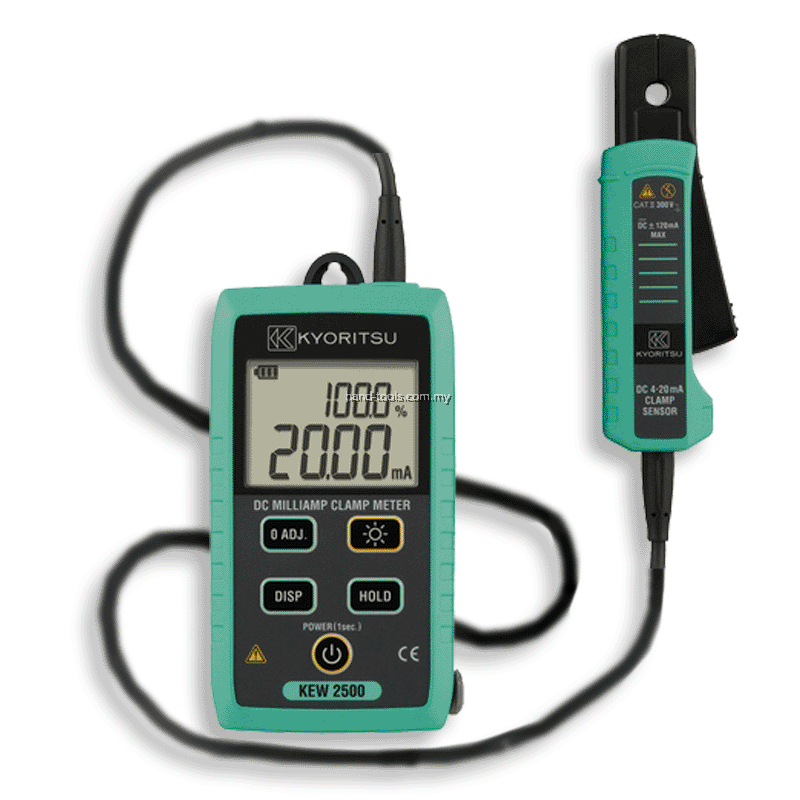

Kyoritsu 2500 DC Milliamp Clamp Meter
• 0.01mA resolution for DC current
• Top class measurement 0.2% accuracy
• Ø6mm clamp jaw easy to use in tight places
• Measurement from 0.01mA to 120.0mA
• Dual display with backlight shows both mA measurement and percent of 4-20 mA span
• Spotlight for illuminating measurement point
• Analog output terminal for recorder connection
• Complies with IEC 61010-1 CAT II 300V
| DC A | 20/100mA (Auto ranging) ±0.2%rdg±5dgt (0.00mA - 21.49mA) ±1.0%rdg±5dgt (21.0mA - 120.0mA) |
|---|---|
| Conductor size | Ø6mm max. |
| Analog output | Recorder: DC 1000mV against DC 100mA |
| Applicable standards | IEC 61010-1, 61010-2-030 CAT II 300V IEC 61010-2-032 IEC 61326-1, 61326-2-2 IEC 60529 IP40 |
| Operating temperature & humidity range | -10 - +50ºC < 85% |
| Storage temperature & humidity range | -20 - +60ºC < 85% |
| Power source | R6/LR6 (AA) (1.5V) × 4 |
| Dimensions | 111(L) × 61(W) × 40(D)mm : Display unit 104(L) × 34(W) × 20(D)mm : Sensor 700mm : Sensor cable |
| Weight | Approx. 290g (including batteries) |
| Included Accessories | 9096 (Carrying case), LR6 (AA) × 4, Instruction Manual |
| Optional Accessories | 7256 (Output cord) |
