Description

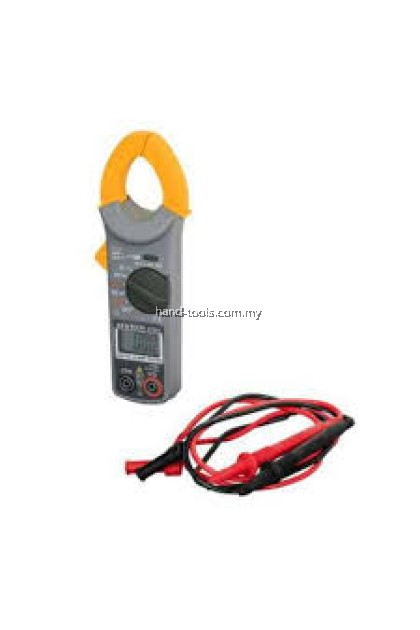

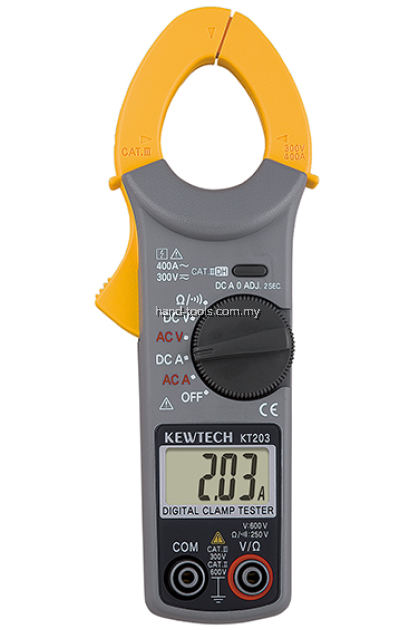

KYORITSU KT203 AC/DC Digital Clamp Meter | KEWTECH KT 203
The KT 203 AC/DC Clamp Meter is a small and handy clamp meter designed for ease of use in various electrical applications. It complies with IEC 61010-1 Safety Standards CAT III 300V / CAT II 600V, making it a reliable choice for professional and personal use. With a 400A AC/DC current measurement capability, this compact tool also provides DMM functions, including AC/DC voltage, resistance, and continuity buzzer testing.
Key Features:
- Compact and Lightweight: Designed for easy handling and portability.
- AC/DC Current Measurement: Measures currents up to 400A with high accuracy.
- DMM Functions: Supports AC/DC voltage, resistance, and continuity testing.
- Safety Compliance: Certified to IEC 61010-1 CAT III 300V / CAT II 600V for safe operation.
- Durable and Reliable: Built to handle tough environments with robust performance.
Specifications Table
| Function | Range | Accuracy |
|---|---|---|
| AC Current (ACA) | 40.00A / 400.0A (Auto-ranging) | ±3.0%rdg ±8dgt [50/60Hz] (0 - 40.00A); ±3.5%rdg ±6dgt [50/60Hz] (15.0 - 299.9A); ±4.0%rdg ±6dgt [50/60Hz] (300.0 - 400.0A) |
| DC Current (DCA) | 40.00A / 400.0A (Auto-ranging) | ±3.0%rdg ±8dgt (0 - 40.00A); ±3.5%rdg ±6dgt (15.0 - 299.9A); ±4.0%rdg ±6dgt (300.0 - 400.0A) |
| AC Voltage (ACV) | 400.0V / 600V (Auto-ranging) | ±2.0%rdg ±5dgt [50/60Hz] |
| DC Voltage (DCV) | 400.0V / 600V (Auto-ranging) | ±1.5%rdg ±5dgt |
| Resistance (Ω) | 400.0Ω / 4000Ω (Auto-ranging) | ±2.0%rdg ±5dgt |
| Continuity Buzzer | — | Buzzer sounds below 50 ±35Ω |
| Conductor Size | Ø30mm max. | — |
General Specifications
| Feature | Details |
|---|---|
| Applicable Standards | IEC 61010-1 CAT III 300V (ACA) / CAT II 600V Pollution Degree 2; IEC 61010-2-032; IEC 61326-1 |
| Power Source | 2 × R03 (AAA) (1.5V) |
| Dimensions | 187 mm × 68.5 mm × 38.5 mm |
| Weight | Approx. 200g (including batteries) |
| Accessories Included | Test leads (7066A), 2 × R03 (AAA) batteries, instruction manual |
| Optional Accessories | Carrying case (9105) |
Warranty: 1 Year
