| Price | RM4,860.00 |
| Product SKU | KYORITSU 8343 Signal Source KEW 8343 |
| Brand | Kyoritsu |
| Availability | In Stock |
| Shipping Fee | |
| Quantity |
|
Description

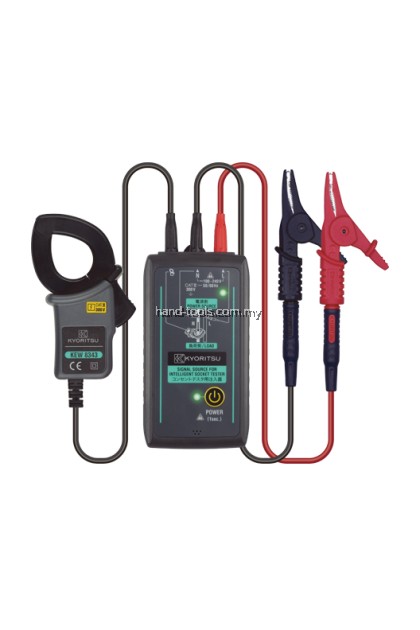

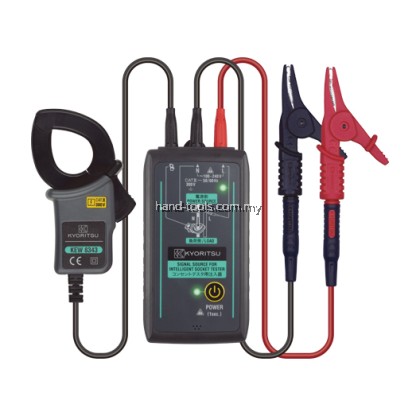

KYORITSU 8343 Signal Source KEW 8343
The KYORITSU 8343 signal source is designed for professional testing of intelligent socket testers. The KYORITSU 8343 signal source generates accurate and stable signals, ensuring precise detection of socket wiring conditions. Ideal for electricians, engineers, and maintenance technicians, this signal source improves efficiency and reliability in electrical inspections.
Key Features:
- Enhanced Testing: When combined with the KEW 4506, this signal source boosts testing capabilities significantly.
- Compact Design: Small and lightweight for easy portability, ideal for fieldwork.
- TRMS Output: Provides approximately 20mV RMS for accurate measurements.
- Convenient Setup: Allows easy testing with no complex setup required.
Specifications Table
| Feature | Details |
|---|---|
| Applicable Models | KEW 4506 |
| Conductor Size | Ø24mm max. |
| Test Voltage Frequency | Approx. 1.8kHz |
| TRMS | Approx. 20mV RMS |
| Allowable Input Range | 300V AC rms (50/60Hz) continuous / 100A AC (50/60Hz) continuous |
| Applicable Standards | IEC 61010-1, IEC 61010-031, IEC 61010-2-032 CAT Ⅲ 300V Pollution degree 2, IEC 60529 (IP40) |
| Operating Temperature and Humidity Range | -10 to 50°C, relative humidity 85% or less (no condensation) |
| Storage Temperature and Humidity Range | -20 to 60°C, relative humidity 85% or less (no condensation) |
| Power Source | LR6 (AA) (1.5V) × 6 |
| Dimensions | Unit: 112(L) × 61(W) × 42(D) mm |
| Weight | Approx. 520g (including batteries) |
| Accessories | 7157B (Alligator clips), 9096 (Carrying case), LR6 (AA) × 6, Instruction manual |
Warranty: 1 Year
