| Price | RM264.00 |
| Product SKU | KYORITSU 5711 Voltage Detector | KEW 5711 |
| Brand | Kyoritsu |
| Availability | In Stock |
| Shipping Fee | |
| Quantity |
|
Description

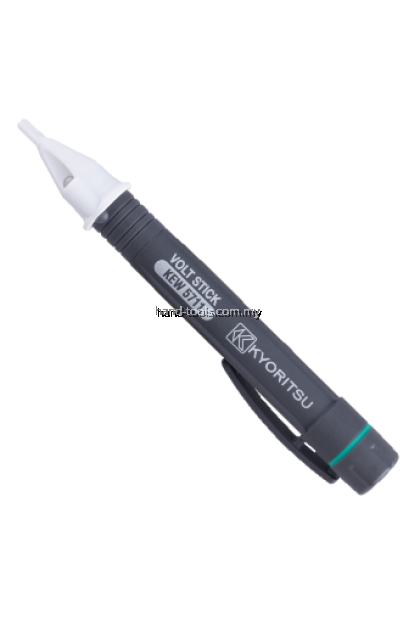

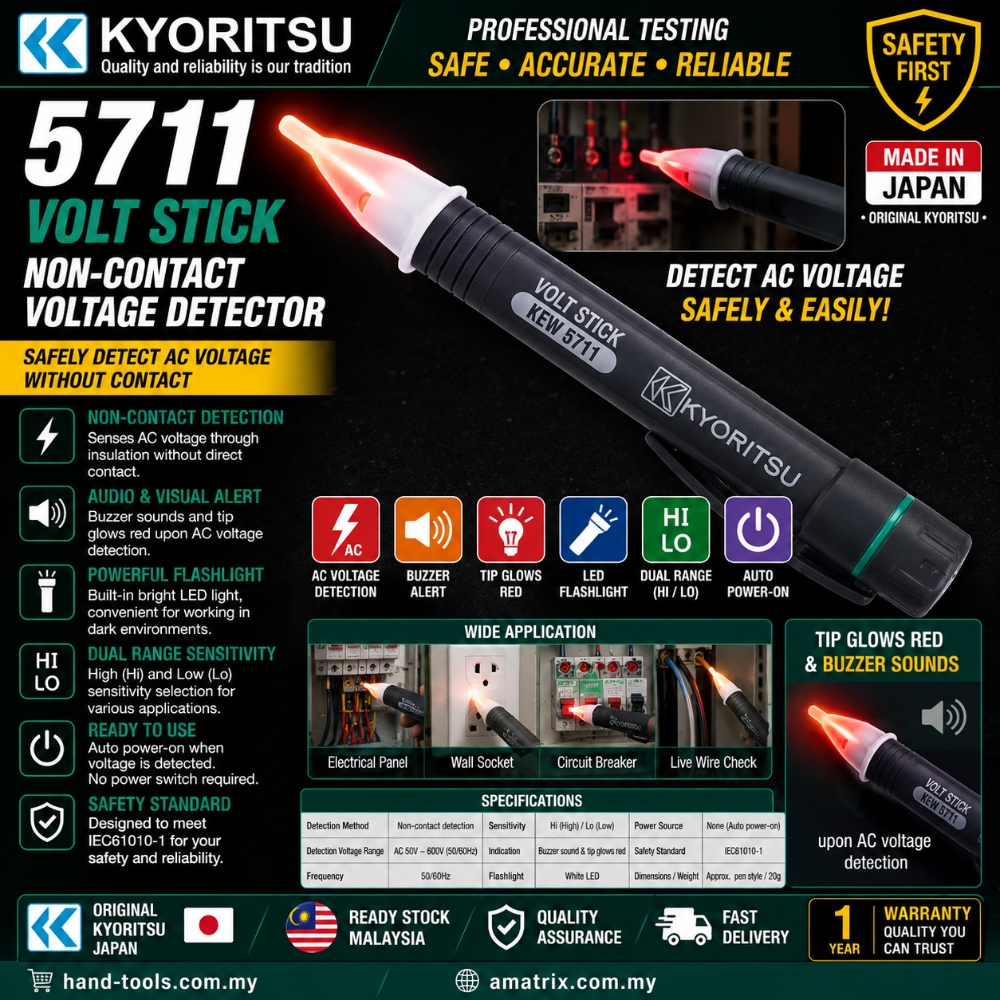

KYORITSU 5711 Voltage Detector | KEW 5711
The KYORITSU 5711 Voltage Detector is a precise and reliable tool for detecting AC voltage up to 600V without making direct contact with wires. The KEW 5711 ensures safety and accuracy for electricians, technicians, and maintenance professionals performing field inspections and troubleshooting. Its compact and ergonomic design makes it easy to carry and operate in confined spaces, while the durable housing protects the device from regular wear and tear. The KYORITSU 5711 Voltage Detector delivers instant visual and audible feedback, ensuring efficient and safe electrical testing in industrial, commercial, and residential environments.
Key Features:
- Voltage Detection Through Insulation: Detects AC voltage without direct contact with the conductor.
- Buzzer and Glowing Tip: Audible sound and glowing tip indicate the presence of AC voltage.
- Dual Sensitivity Ranges: Features both high and low sensitivity for varying voltage levels.
- Powerful Flashlight: Provides additional utility in dark or low-light environments.
- No Power-On Needed: Ready to use immediately for fast voltage detection.
- IEC 61010-1 Compliance: Designed to meet CAT IV 600V / CAT III 1000V safety standards.
Specifications Table
| Function | Range | Accuracy |
|---|---|---|
| Operating Voltage | AC 90 - 1000V (Lo sensitivity), AC 20 - 1000V (Hi sensitivity) | — |
| Frequency Range | 50/60Hz | — |
| Operating Temperature Range | -10°C to 50°C | — |
| Storage Temperature Range | -20°C to 60°C | — |
| Power Source | LR03 / R03 (AA) 1.5V × 2 | — |
General Specifications
| Feature | Details |
|---|---|
| Dimensions | 153(L) × φ20mm |
| Weight | Approx. 40g (including batteries) |
| Accessories Included | LR03 (AA) × 2, Instruction manual |
| Applicable Standards | IEC 61010-1 CAT IV 600V / CAT III 1000V Pollution degree 2 |
Warranty: 1 Year
