| Price | RM4,500.00 |
| Product SKU | Kyoritsu 3552BT |
| Brand | Kyoritsu |
| Availability | In Stock |
| Shipping Fee | |
| Quantity |
|

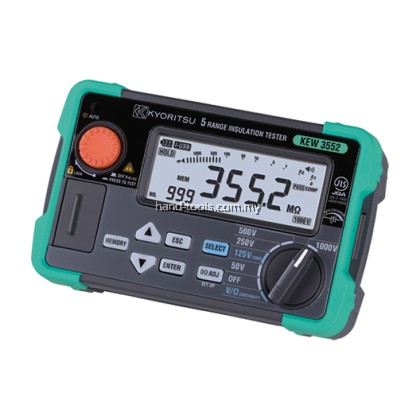

Kyoritsu 3552BT Digital Insulation / Continuity Tester With memory and Bluetooth communication functions
The Kyoritsu 3552BT Digital Insulation/Continuity Tester (KEW 3552BT) is a professional-grade instrument designed for advanced electrical diagnostics, combining high-speed measurements with smart data management via Bluetooth and internal memory. Below is a detailed breakdown of its specifications, features, and capabilities:
-
Test Voltages: Six selectable ranges (50V, 100V, 125V, 250V, 500V, 1000V) 149.
-
Measuring Range: Up to 40 GΩ (at 1000V) with auto-ranging 113.
-
Accuracy: ±2% rdg ±2 dgt in primary ranges; ±5% rdg in extended ranges 49.
-
Diagnostic Functions: Supports Polarization Index (PI) and Dielectric Absorption Ratio (DAR) for insulation health assessment
-
Range: Auto-ranging (40.00 Ω, 400.0 Ω, 4000 Ω) 19.
-
Accuracy: ±2.5% rdg ±8 dgt 9.
-
Zero Ω Adjustment: Compensates for test lead resistance
-
AC Voltage: 2–600 V (45–65 Hz).
-
DC Voltage: ±2–600 V
-
Version: Bluetooth 4.0 LE (Smart) or 5.0 (varies by source) 19.
-
Compatible App: KEW Smart Advanced (iOS/Android) for real-time data transfer, report generation, and test management 115.
-
Wireless Range: ~10 meters (standard Bluetooth range)
-
Stores measurement data for later recall or transfer 913.
-
Functions: Save, Recall, and Delete data directly on the device
-
Wireless: Transfer to smartphones/tablets via Bluetooth.
-
Wired: USB interface for direct PC connectivity 19.
-
Software Compatibility: Includes KEW Report for PC-based data analysis
-
World’s Fastest Measurement: 0.5 seconds per insulation test 413.
-
Auto-Discharge Function: Safely discharges capacitive charges after testing 9.
-
Display & Visibility:
-
Backlit LCD with 6,039-count resolution.
-
LED Worklight for dimly lit environments
-
IEC 61010 CAT III 600V / CAT IV 300V rated 19.
-
IP40 Protection: Dust and water splash resistance 4
-
Parameter Specification Power Source 4 × AA batteries (LR6/R6) 19 Dimensions & Weight 97 × 156 × 46 mm / 490g (including batteries) 49 Communication Interfaces USB, Bluetooth 19 Operating Temperature -10°C to 50°C (14°F to 122°F) -
Standard Accessories:
-
Test leads (7260 with remote switch, 7261A with alligator clips).
-
Extension prod (8017A), carrying case (9173), shoulder strap, batteries 19.
-
-
Optional Add-ons:
-
L-shaped probe (7243A), hook-type prod (8016), USB adapter (8212-USB)
-
The Kyoritsu 3552BT excels in high-efficiency insulation testing and modern data workflow integration, making it ideal for:
-
Electricians managing compliance reports.
-
Industrial maintenance teams performing predictive diagnostics.
-
Engineers needing rapid, traceable measurements in confined spaces.
Its Bluetooth synergy, safety robustness, and diagnostic depth justify the investment for professionals prioritizing accuracy and productivity. For basic use, consider the non-BT KEW 3552
-
-
