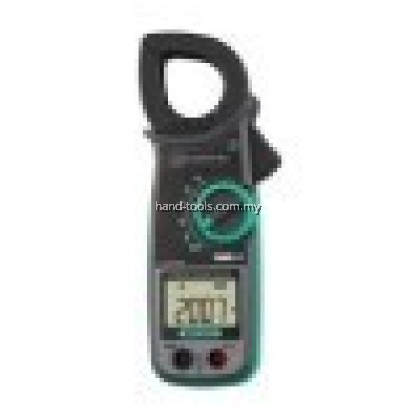

Kyoritsu 2007R AC Digital Clamp Meter
The Kyoritsu 2007R (KEW 2007R) is a True RMS AC clamp meter designed for precision electrical measurements in industrial and maintenance settings. Below is a detailed synthesis of its specifications, features, and global availability based on verified sources:
-
Range: 600V for both AC and DC 38.
-
Accuracy:
-
AC: ±1.2% rdg ±3 dgt (45–65 Hz); ±1.5% rdg ±4 dgt (40–400 Hz) 911.
-
DC: ±1.2% rdg ±3 dgt
-
Resistance: Auto-ranging (600.0Ω/6.000kΩ) with ±1.3–2.0% accuracy 311.
-
Continuity Buzzer: Activates below 90Ω
-
Safety Rating: CAT IV 300V / CAT III 600V (compliant with IEC 61010-1, IEC 61010-031) 31113.
-
Jaw Design: Fully insulated safety jaws (max conductor size: Ø33mm) for live-circuit safety 38.
-
Durability: IP40-rated (dust/splash-resistant) and ergonomic over-molded body for one-handed operation 3611.
-
Auto Discharge: Safely releases stored charge after testing
-
Display: Large backlit LCD with 0.1A resolution for clear readings 311.
-
Battery Life: ~170 hours continuous use (2×AAA batteries) with auto power-off (~10 minutes idle) 3813.
-
Portability: Compact dimensions (204×81×36 mm) and lightweight (220g including batteries)
-
Feature Kyoritsu 2007R Specs AC Current Range 600.0A/1000A auto-ranging Voltage Range AC/DC 600V True RMS Support Yes (40–400 Hz) Safety Rating CAT IV 300V / CAT III 600V Continuity Buzzer Activates <90Ω Battery Life 170 hours (2×AAA) Weight/Dimensions 220g / 204×81×36 mm -
❌ No DC Current Measurement: AC-only current sensing 610.
-
❌ Harmonics Analysis Absent: Lacks advanced power-quality features (e.g., compared to Kyoritsu 2062BT)
-
Industrial Maintenance: Troubleshooting motors, HVAC, and VFD-driven equipment with True RMS accuracy 311.
-
Field Diagnostics: Lightweight design and long battery life support extended on-site use 813.
-
⚠️ Recommendation: For DC current measurements, consider models like the Kyoritsu 2056R. Verify regional compliance (e.g., Bluetooth regulations if applicable) before purchase.
-
Safety-Critical Environments: CAT IV 300V rating ensures reliability in high-energy circuits 911.
-
