Name: Fluke 424D 100m Laser Distance Meter
Brand: Fluke
SKU: Fluke 424D
Price: 3200.00 MYR
Availability: InStock

RM3,200.00

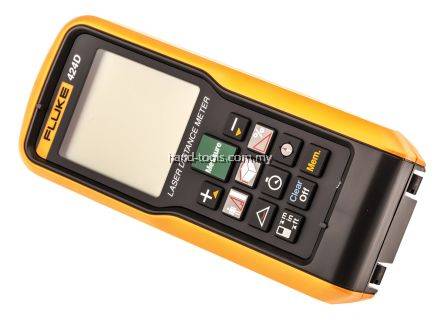

Fluke 424D 100m Laser Distance Meter

Price	RM3,200.00
Product SKU	Fluke 424D
Brand	Fluke
Availability	In Stock
Shipping Fee

Quantity

Product
Description
Reviews (0)

Description

Highlight
								Measures up to 100 m (330 ft)
Higher accuracy: +/-1 mm (0.04 in)
4-line display shows you even more data at a glance
Inclination sensor assists with height tracking, leveling, and indirect horizontal distance measurements when line-of-sight is blocked by an obstacle
Corner angle feature, allows you to determine the angle of a corner
Compass provides a "heading" for your distance measurements
Stores 20 complete displays for quick recall
Backlight
Tripod mode allows you to mount the meter to a tripod when measuring long distances
Full Pythagoras function for height measurements
Audible keypad feedback
Stake Out feature helps you mark out defined lengths such as when constructing wooden frames
Automated End-piece Correction for measuring from an edge or corner --a built-in sensor detects the position of this bracket and automatically changes the reference point
Minimum/Maximum function
Enhanced environmental protection:IP54-rated as dust and water spray resistant
Improved battery life of 5000 measurements with auto shut-off feature



Fluke 424D 100m Laser Distance Meter

Fluke 424D Features :

The Fluke 424D is our most sophisticated laser distance meter packed with versatile features to save you more time in more situations. It extends your measurement reach to 100 meters (330 feet). It offers a bigger, 4-line display, a built-in compass, and a 180º inclination sensor for leveling and height tracking.

Measures up to 100 m (330 ft)
Higher accuracy: +/-1 mm (0.04 in)
4-line display shows you even more data at a glance
Inclination sensor assists with height tracking, leveling, and indirect horizontal distance measurements when line-of-sight is blocked by an obstacle
Corner angle feature, allows you to determine the angle of a corner
Compass provides a "heading" for your distance measurements
Stores 20 complete displays for quick recall
Backlight
Tripod mode allows you to mount the meter to a tripod when measuring long distances
Full Pythagoras function for height measurements
Audible keypad feedback
Stake Out feature helps you mark out defined lengths such as when constructing wooden frames
Automated End-piece Correction for measuring from an edge or corner --a built-in sensor detects the position of this bracket and automatically changes the reference point
Minimum/Maximum function
Enhanced environmental protection:IP54-rated as dust and water spray resistant
Improved battery life of 5000 measurements with auto shut-off feature

Like all the new Fluke Laser Distance Meters, the 424D offers instant, one-button measurements of the distance between two objects with:

Easy targeting with bright laser
Quick calculations of area (square feet/meters) and volume
Easy-to-use addition and subtraction function

All meters offer:

Reduction of estimation errors, saving both time and money
The most advanced 2 laser technology for distance measurement
Instant measurement with one-button operation
Easy addition and subtraction function
Quick calculation of area (square footage) and volume
Easy addition and subtraction of measurements
Minimum/maximum function
Improved battery life from automatic shut-off feature
Pythagoras calculation for determining distance indirectly from two other measurements
Pouch with Fluke logo

The 424D and 419D additionally offers:

Improved visibility with backlit screen
Ability to measure up to 80 m (260 ft) for 419D, 100 m (330 ft) for 424D
Tripod mode allows you to mount to a tripod for measuring long distances
Stake out function
Enhanced Pythagoras calculation for determining distance indirectly from three other measurements
Audible keypad feedback
Storage of the last twenty measurements for quick recall of distance
Strong environmental protection with IP54 (water spray and dust proof) sealing

The 424D additionally offers:

Inclination sensor for taking measurements in hard to reach areas
Compass provides a "heading" for distance measurement
Automated end-piece correction: when measuring from an edge or corner, a built-in sensor detects the position of this bracket and automatically changes the reference point

Fluke 424D Specification :

414D	419D	424D
Distance Measurement
Typical Measuring Tolerance[1]	± 2.0 mm [3]	± 1.0 mm [3]
Maximum Measuring Tolerance[2]	± 3.0 mm [3]	± 2.0 mm [3]
Range at Leica target plate GZM26	50 m / 165 ft	80 m / 260 ft	100 m / 330 ft
Typical Range[1]	40 m / 130 ft	80 m / 260 ft	80 m / 260 ft
Range at unfavorable condition[4]	35 m / 115 ft	60 m / 195 ft	60 m / 195 ft
Smallest unit displayed	1 mm / 1/16 in	6 /30 / 60 mm (10 / 50 / 100 m)
∅ laser point at distances	6 /30 / 60 mm (10 / 50 / 100 m)	6 /30 / 60 mm (10 / 50 / 100 m)
Tilt measurement
Measuring tolerance to laser beam[5]	No	No	± 0.2°
Measuring tolerance to housing[5]	No	No	± 0.2°
Range	No	No	360°
General
Laser class	2
Laser type	635 nm, <1 mW
Protection class	IP40	IP54
Automatic laser off	After 90 seconds
Automatic power off	after 180 seconds
Battery life (2 x AAA) 1.5 V NEDA 24A/IEC LR03	Up to 3,000 measurements	Up to 5,000 measurements
Size (H X W X L)	116mm Length 53mm Width 33mm Depth	127mm Length 56mm Width 33mm Depth	127mm Length 56mm Width 33mm Depth
Weight (with batteries)	113 g	153 g	158 g
Temperature range: Storage Operation	-25 °C to +70°C (-13 °F to +158 °F) 0 °C to +40 °C (32 °F to +104 °F)	-25 °C to +70°C (-13 °F to +158 °F) -10 °C to +50 °C (14 °F to +122 °F)
Calibration cycle	Not applicable	Not applicable	Tilt and compass
Maximum altitude	3000 m	3000 m	3000 m
Maximum relative humidity	85% at 20 °F to 120°F (-7 °C to 50 °C)	85% at 20 °F to 120°F (-7 °C to 50 °C)	85% at 20 °F to 120°F (-7 °C to 50 °C)
Safety	IEC Standard No. 61010-1:2001 EN60825-1:2007 (Class II)
EMC	EN 55022:2010 EN 61000-4-3:2010 EN 61000-4-8:2010
[1] Applies for 100 % target reflectivity (white painted wall), low background illumination, 25 °C. [2] Applies for 10 to 500 % target reflectivity, high background illumination, -10 °C to +50 °C. [3] Tolerances apply from 0.05 m to 10 m with a confidence level of 95 %. The maximum tolerance may deteriorate to 0.1 mm/m between 10 m to 30 m and to 0.15 mm/m for distances above 30 m. [4] Applies for 100 % target reflectivity, background illumination between 10'000 lux and 30'000 lux. [5] After user calibration. Additional angle related deviation of ±0.01° per degree up to ±45° in each quadrant. Applies at room temperature. For the whole operating temperature range the maximum deviation increases by ±0.1°.
