| Price | RM2,945.00 |
| Product SKU | Fluke 374 |
| Brand | Fluke |
| Availability | In Stock |
| Shipping Fee | |
| Quantity |
|
- iFlex flexible current probe (sold separately) expands the measurement range to 2500 A ac while providing increased display flexibility, ability to measure awkward sized conductors and improved wire access
- CAT IV 600 V, CAT III 1000 V
- Propietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
- Ergonomic design fits in your hand and can be used while wearing personal protective equipment
- Large, easy to read backlight display automatically sets the correct measurement range so you do not need to change the switch positions while taking a measurement
- Three-year warranty
- Soft carrying case
Fluke 374 AC/DC Clamp Meter, 600A
The Fluke 374 True-rms Clamp Meter can read up to 600 V and 600 A in both ac and dc modes. Additionally, the 374 is compatible with the new iFlex flexible current probe (sold separately), which increases the measurement range to 2500 A ac and provides increased display flexibility, and improved wire access.
Safety Conformance
EN/IEC 61010-1:2001; 1000V CAT III, 600V CAT IV
Features and benefits of the Fluke 374
- iFlex flexible current probe (sold separately) expands the measurement range to 2500 A ac while providing increased display flexibility, ability to measure awkward sized conductors and improved wire access
- CAT IV 600 V, CAT III 1000 V
- Propietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
- Ergonomic design fits in your hand and can be used while wearing personal protective equipment
- Large, easy to read backlight display automatically sets the correct measurement range so you do not need to change the switch positions while taking a measurement
- Three-year warranty
- Soft carrying case

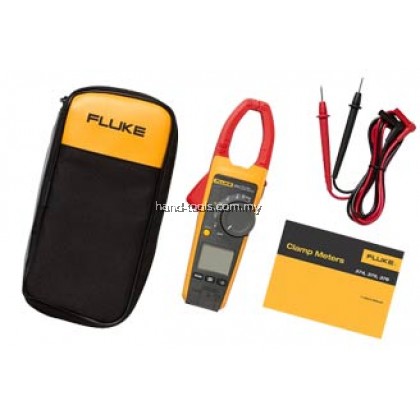

Fluke 374 Included
*Coated instruction card
*Safety information sheet
*Soft carrying case
*TL75 test leads
*Two AA Alkaline batteries
|
|
Range |
Resolution |
Accuracy |
|
AC current via jaw |
600 A |
0.1 A |
2 % ± 5 digits |
|
AC current via iFlex |
2500 A |
0.1 A |
3 % ± 5 digits |
|
DC current |
600 A |
0.1 A |
2 % ± 5 digits |
|
AC voltage |
600 V |
0.1 V |
1.5 % ± 5 digits |
|
DC voltage |
600 V |
0.1 V |
1 % ± 5 digits |
|
Resistance |
6,000 Ω |
0.1 Ω |
1 % ± 5 digits |
|
Capacitance |
1 μF to 1000 μF |
1 μF |
1 % ± 4 digits |
|
True-rms |
yes |
||
|
Continuity |
yes |
||
|
Hold |
yes |
||
|
Backlight |
yes |
||
|
Min/Max |
yes |
||
|
Inrush |
yes |
||
|
18" iFlex Flexible Current Probe |
optional accessory |
||
|
10" iFlex Flexible Current Probe |
optional accessory |
||
|
Wire capacity |
750 MCM or 2-500 MCM |
||
|
Safety rating |
CAT III 1000 V, CAT IV 600 V |
||
