Description

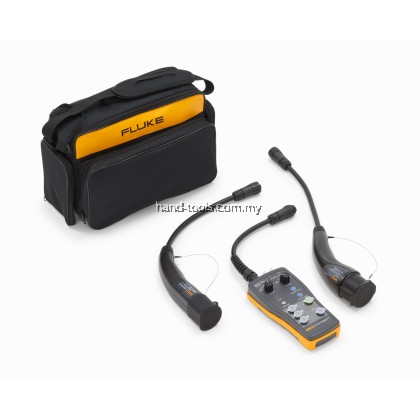

Fluke FK FEV300/TY1 & TY2 EV Charging Station Test Adapter Kit: Type 1 & 2 Connectors
Key Features:
- Dual Compatibility: Equipped with both FEV300-CON-TY1 Type 1 Plug for North American stations and FEV300-CON-TY2 Type 2 Plug for European stations, offering versatile testing capabilities.
- Simulates EV Presence: The adapter mimics an electric vehicle, initiating a charging cycle to activate voltage and current output for comprehensive testing.
- Extensive Testing Options: Conduct a wide range of tests including ground fault checks, insulation integrity, voltage measurement, and duty cycle analysis to determine the maximum current available for charging.
- Error Simulation: Allows simulation of Control Pilot (CP) and PE (Earth Fault) errors, essential for troubleshooting and ensuring station functionality.
- Phase Indication: Features three LED lamps for clear phase indication, making it easy to check for the presence of voltage.
- Safety and Standards Compliance: Designed to test in accordance with IEC/EN 61851-1 and IEC/HD 60364-7-722 standards, ensuring your charging stations meet stringent safety requirements.
- Portable and Robust: Comes with a soft carrying case for easy transport and storage, protecting your investment against the rigors of fieldwork.
Specifications Table:
| Specification | Details |
|---|---|
| Model | FEV300/TY1 & TY2 |
| Connector Type | Type 1 (SAE J1772) & Type 2 (IEC 62196) Connectors |
| Compatibility | EV Charging Stations with Type 1 or Type 2 connectors |
| Voltage Measurement | Up to 500 V AC |
| Current Measurement | Up to 80 A AC |
| Insulation Test | Yes, for checking insulation integrity |
| Error Simulation | Control Pilot (CP) and Proximity Pilot (PP) errors, Earth Fault detection |
| Phase Indication | 3 LED phase indicators |
| Standards Compliance | IEC/EN 61851-1, IEC/HD 60364-7-722 |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Storage Temperature | -20°C to +60°C (-4°F to 140°F) |
| Weight (with Case) | 2.0kg |
| Included Accessories | Soft carrying case, user manual |
| Warranty | 12 Months |
