| Price | RM2,750.00 |
| Product SKU | fluke 325 |
| Brand | Fluke |
| Availability | In Stock |
| Shipping Fee | |
| Quantity |
|

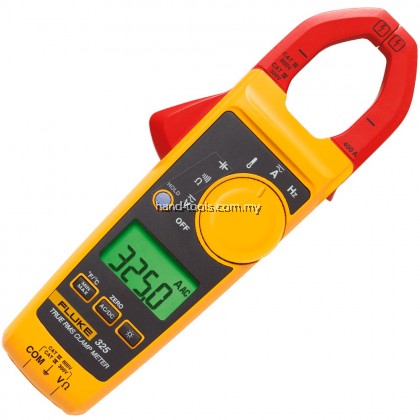

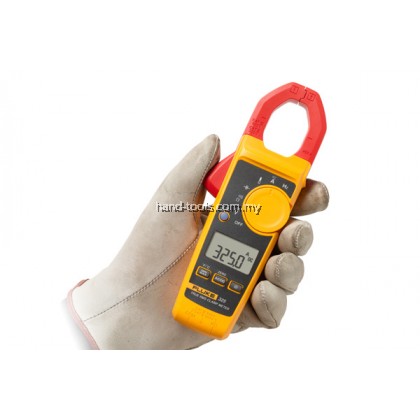

Fluke 325 True-RMS Clamp Meter | Ujian Voltan & Arus AC/DC | Suhu, Kekerapan & Kesinambungan AC/DC True-rms Clamp Meters
| Specification / Spesifikasi | Details / Maklumat |
|---|---|
| Brand / Jenama | Fluke |
| Model / Model | 325 |
| Voltage Measurement / Ukur Voltan | AC/DC up to 600V |
| Current Measurement / Ukur Arus | AC/DC up to 400A |
| Resistance / Rintangan | Up to 40 kΩ |
| Temperature Range / Suhu | -10°C to +400°C |
| Frequency / Kekerapan | 5 Hz to 500 Hz |
| True-RMS / True-RMS | ✅ Accurate for non-linear loads |
| Continuity / Kesinambungan | ✅ With audible buzzer |
| Display / Paparan | Digital LCD with backlight |
| Included / Termasuk | Test leads, K-Type thermocouple, pouch |
| Safety Rating / Penilaian Keselamatan | CAT III 600V, CAT IV 300V |
· 400 A ac current measurement
· 600 V ac and dc voltage measurement
· True-rms ac voltage and current for accurate measurements on non-linear signals
· Resistance measurement up to 40 kΩ with continuity detection
· Slim, ergonomic design
· CAT IV 300V/CAT III 600 V safety rating
· Hold button
· Two-year warranty
· Soft carrying case
Fluke 325 Specification :
|
323 |
324 |
325 |
||
|
AC current |
Range |
400.0 A |
40.00 A/400.0 A |
40.00 A/400.0 A |
|
Accuracy |
2 % ± 5 digits |
1.5 % ± 5 digits |
2 % ± 5 digits |
|
|
DC current |
Range |
- |
- |
40.00 A/400.0 A |
|
Accuracy |
- |
- |
2 % ± 5 digits |
|
|
AC voltage |
Range |
600.0 V |
600.0 V |
600.0 V |
|
Accuracy |
1.5 % ± 5 digits |
1.5 % ± 5 digits |
1.5 % ± 5 digits |
|
|
DC voltage |
Range |
600.0 V |
600.0 V |
600.0 V |
|
Accuracy |
1.0 % ± 5 digits |
1.0 % ± 5 digits |
1.0 % ± 5 digits |
|
|
Resistance |
Range |
400.0 Ω/ 4000 Ω |
400.0 Ω/ 4000 Ω |
400.0 Ω/ 4000 Ω/ 40.00 kΩ |
|
Accuracy |
1.0 % ± 5 digits |
1.0 % ± 5 digits |
1.0 % ± 5 digits |
|
|
Continuity |
≤ 70 Ω |
≤ 30 Ω |
≤ 30 Ω |
|
|
Capacitance |
- |
100.0 μF to 1000 μF |
100.0 μF to 1000 μF |
|
|
Frequency |
- |
- |
5.0 Hz to 500.0 Hz |
|
|
AC response |
True-rms |
True-rms |
True-rms |
|
|
Backlight |
- |
Yes |
Yes |
|
|
Data hold |
Yes |
Yes |
Yes |
|
|
Contact temperature |
- |
-10.0 °C to 400.0 °C |
-10.0 °C to 400.0 °C |
|
|
Min/Max |
- |
- |
Yes |
|
|
Size |
H x W x D (mm) |
207 x 75 x 34 |
207 x 75 x 34 |
207 x 75 x 34 |
|
Max wire diameter |
30 mm (600 MCM) |
30 mm (600 MCM) |
30 mm (600 MCM) |
|
|
Weight |
265 g |
208 g |
283 g |
|
|
Category rating |
CAT III 600 V |
CAT III 600 V |
CAT III 600 V |
|
|
Warranty |
Two-year |
Two-year |
Two-year |
|

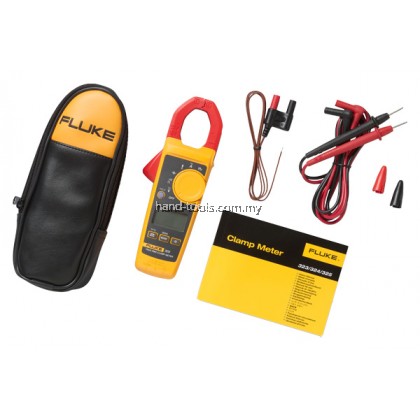

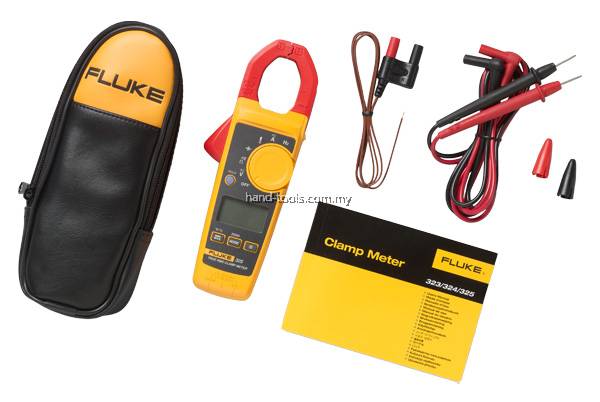

Fluke 325 Included accessories:
· Test leads
· Soft case
· User's manual
